波紋管接頭: 波紋管三通T型接頭 [德盛-波紋管三通T型接頭]
詳細資料

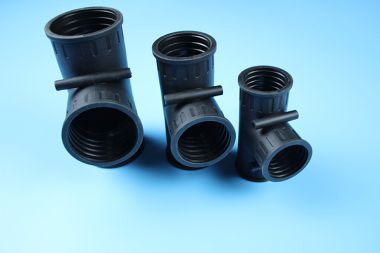

波紋管三通T型接頭
產品編號 | DS-T |
產品材質 | 采用TPE橡膠原料制成 |
工作溫度 | -40℃ ~ ＋100℃ |
防護等級 | IP65 |
產品顏色 | 黑色 |
產品參數：
型號 | 適配軟管尺寸 | Ф11 | Ф12 | Ф13 | ФB1 | ФB2 | ФB3 | D | E | C | F |
DS-T-3×10.0 | 3×10.0 | 7.0 | 7.0 | 7.0 | 17.5 | 17.5 | 17.5 | 46.5 | 32.5 | 18.3 | 4 |
DS-T-3×13.0 | 3×13.0 | 10.0 | 10.0 | 10.0 | 21.0 | 21.0 | 21.0 | 51.0 | 36.0 | 21.0 | 4 |
DS-T-3×15.8 | 3×15.8 | 14.0 | 14.0 | 14.0 | 25.0 | 25.0 | 25.0 | 63.0 | 44.0 | 24.5 | 4 |
DS-T-3×18.5 | 3×18.5 | 15.0 | 15.0 | 15.0 | 26.5 | 26.5 | 26.5 | 70.5 | 48.5 | 24.3 | 4 |
DS-T-3×21.2 | 3×21.2 | 18.0 | 18.0 | 18.0 | 29.5 | 29.5 | 29.5 | 71.5 | 50.0 | 29.5 | 4 |
DS-T-2×21.2/1×28.5 | 2×21.2/1×28.5 | 18.0 | 25.5 | 18.0 | 32.0 | 36.5 | 32.0 | 78.0 | 51.0 | 38.5 | 4 |
DS-T-2×28.5/1×15.8 | 2×28.5/1×15.8 | 25.5 | 14.0 | 25.5 | 36.5 | 25.5 | 36.5 | 65.0 | 56.0 | 24.5 | 4 |
DS-T-3×28.5 | 3×28.5 | 25.5 | 25.5 | 25.5 | 36.5 | 36.5 | 36.5 | 77.0 | 57.5 | 37.0 | 4 |
DS-T-2×28.5/1×34.5 | 2×28.5/1×34.5 | 25.5 | 31.5 | 25.5 | 36.5 | 42.5 | 36.5 | 83.5 | 57.5 | 42.0 | 4 |
DS-T-3×34.5 | 3×34.5 | 31.5 | 31.5 | 31.5 | 42.5 | 42.5 | 42.5 | 85.0 | 64.0 | 42.0 | 4 |
DS-T-3×42.5 | 3×42.5 | 39.7 | 39.7 | 39.7 | 52.5 | 52.5 | 52.5 | 96.0 | 74.5 | 52.8 | 4 |
